12  More advanced ggPlots

Consider this vignette a compliment to your training materials with plotting, including the DataCamp modules as well as the ggplot specific pdfs that have been made available to you.

The idea here is to provide a series of templates for plot types that you can build from when developing your own plots.

When producing a plot, you need to give consideration to:

  1. the kind of data you have, and
  2. the kind of information you are trying to convey.

In that spirit this vignette will be organized with those considerations in mind. I recommend before you even think of producing anything in R, grab a piece of paper and draw what your ideal plot would look like in terms of structure. What goes on each axes? How are groups differentiated? What kind of plot do you want? etc…

12.1 The data

I’ll be using a modified dataset from Danielle Navarro’s Learning statistics with R: A tutorial for psychology students and other beginners which is a nice online text that I may use as a backbone for the course in future years. If you’re interested on Navarro’s take on stats and R, please check it out here. Coincidentally, the lsr package she provides is what we use to calculate certain values like Cohen’s D.

The following data set was used to address the relationships that exist between a newbnorn baby’s (3-6 mos) nightly sleep, their parent’s sleep, and their parent’s overall mood. Several questions modivated the collection of this data, including: - what is the relationship between the average hours of sleep for the baby and parent? - what is the relationship between the average hours of sleep for the parent and their mood? - are these relationships influence by parental role—different for mothers and fathers - does the impact of a newborn baby on sleep differ for mothers and fathers (houts of sleep, grumpiness)

the dataset parent_sleep_data contains the following variables:

  • parent: 100 mothers (typically primary care giver, especially if breast feeding) v. 100 fathers (un-matched)
  • child: 100 parents with their first child v. 100 parents with their second child
  • parent_sleep: average hours parent sleep 30 days prior to assessment
  • baby_sleep: average hours babry sleep 30 days prior to assessment
  • parent_grumpy: parent grunmpiness score
pacman::p_load(tidyverse, cowplot)
parent_sleep_data <- read_csv("http://tehrandav.is/courses/statistics/practice_datasets/parent_sleep.csv")
Rows: 200 Columns: 5
── Column specification ────────────────────────────────────────────────────────
Delimiter: ","
chr (2): parent, child
dbl (3): parent_sleep, baby_sleep, parent_grumpy

ℹ Use `spec()` to retrieve the full column specification for this data.
ℹ Specify the column types or set `show_col_types = FALSE` to quiet this message.
  • You might imagine, this data hits a little close to the heart ;)

12.2 Correlation / Regression for 2 continuous variables

Typically with correlations and regressions you want to present your data in scatterplot form.

Your scatterplot should include:

  • all original data points
  • the regression line
  • the 95% CI about the regression line
  • some like the equation (coefficients) and the \(R^2\) in the plot, but I find it to be busy, I’d suggest mentioning these values in the figure caption or just save them for the text.
  • I like to present the points in a lighter color, with the regression line in a heavier color.

12.2.1 Basic regression example

for example if we wanted to plot the relationship between the average hours of parent’s sleep and their grumpiness:

ggplot(parent_sleep_data, aes(x = parent_sleep, y=parent_grumpy)) +
  geom_point(color="lightgray") + # points in light gray
  stat_smooth(method = "lm", fullrange = T, se = T, # regression line with 95%CI
              color = "black", linetype="solid") + # color and linetype for regression line
  xlab("Average hours parent sleep") +
  ylab("Parent Grumpiness Score") +
  theme_cowplot()
`geom_smooth()` using formula = 'y ~ x'

12.2.2 Independent regression by group

In this case we are extending the question above, by asking whether the relationship between the average hours of parent’s sleep and their grumpiness differs by parental role. We can either put both groups on the sample plot (differentiating by shape, or color, or linetype), or place them side by side.

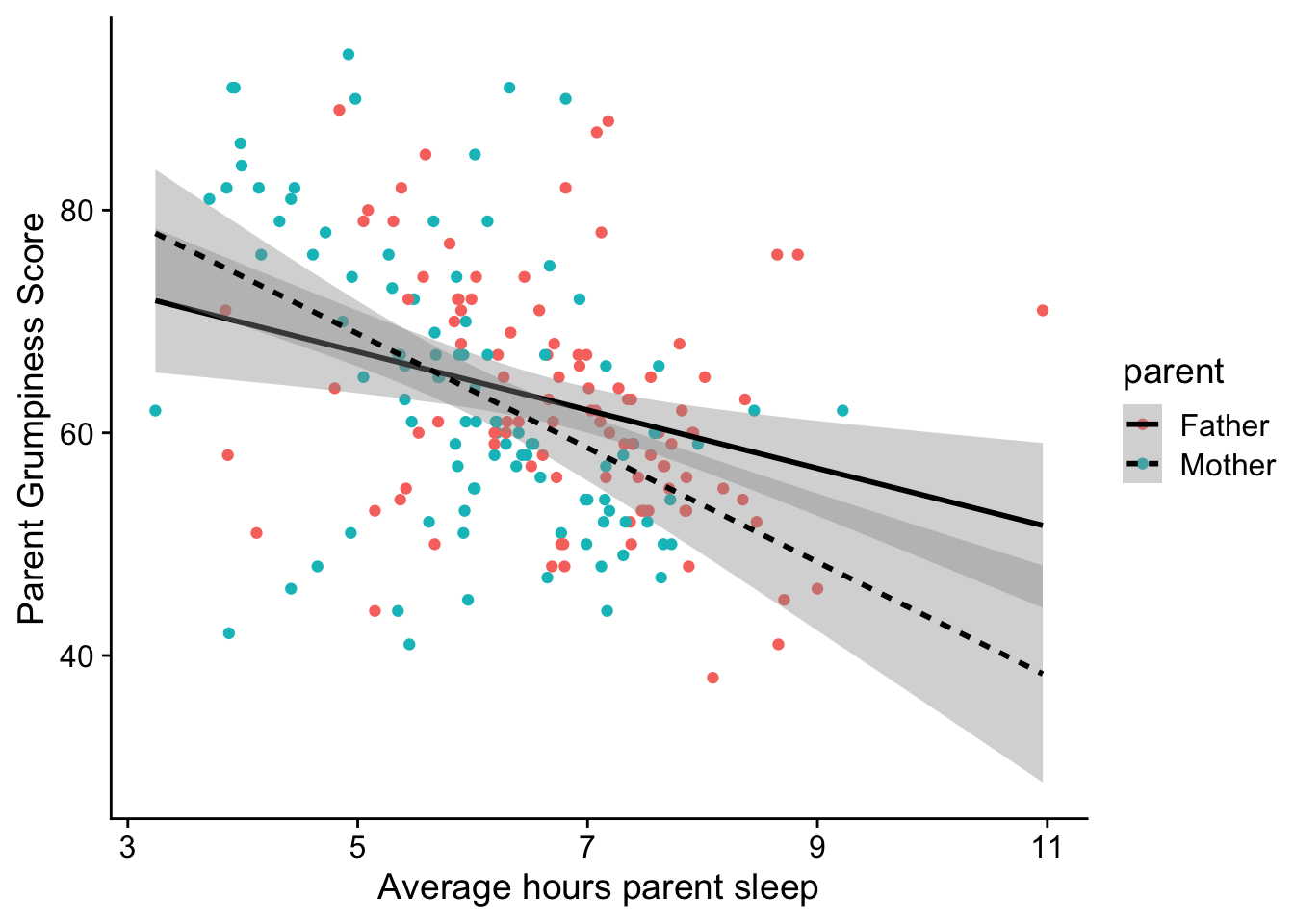

12.2.2.1 same plot

To put different groups on the same plot use the group aesthetic (aes):

ggplot(parent_sleep_data, aes(x = parent_sleep, y=parent_grumpy, group=parent)) +
  geom_point(aes(color=parent)) +
  stat_smooth(method = "lm", fullrange = T, se = T, # regression line with 95%CI
              color = "black", aes(linetype=parent)) + # color and linetype for regression line
  xlab("Average hours parent sleep") +
  ylab("Parent Grumpiness Score") +
  theme_cowplot()
`geom_smooth()` using formula = 'y ~ x'

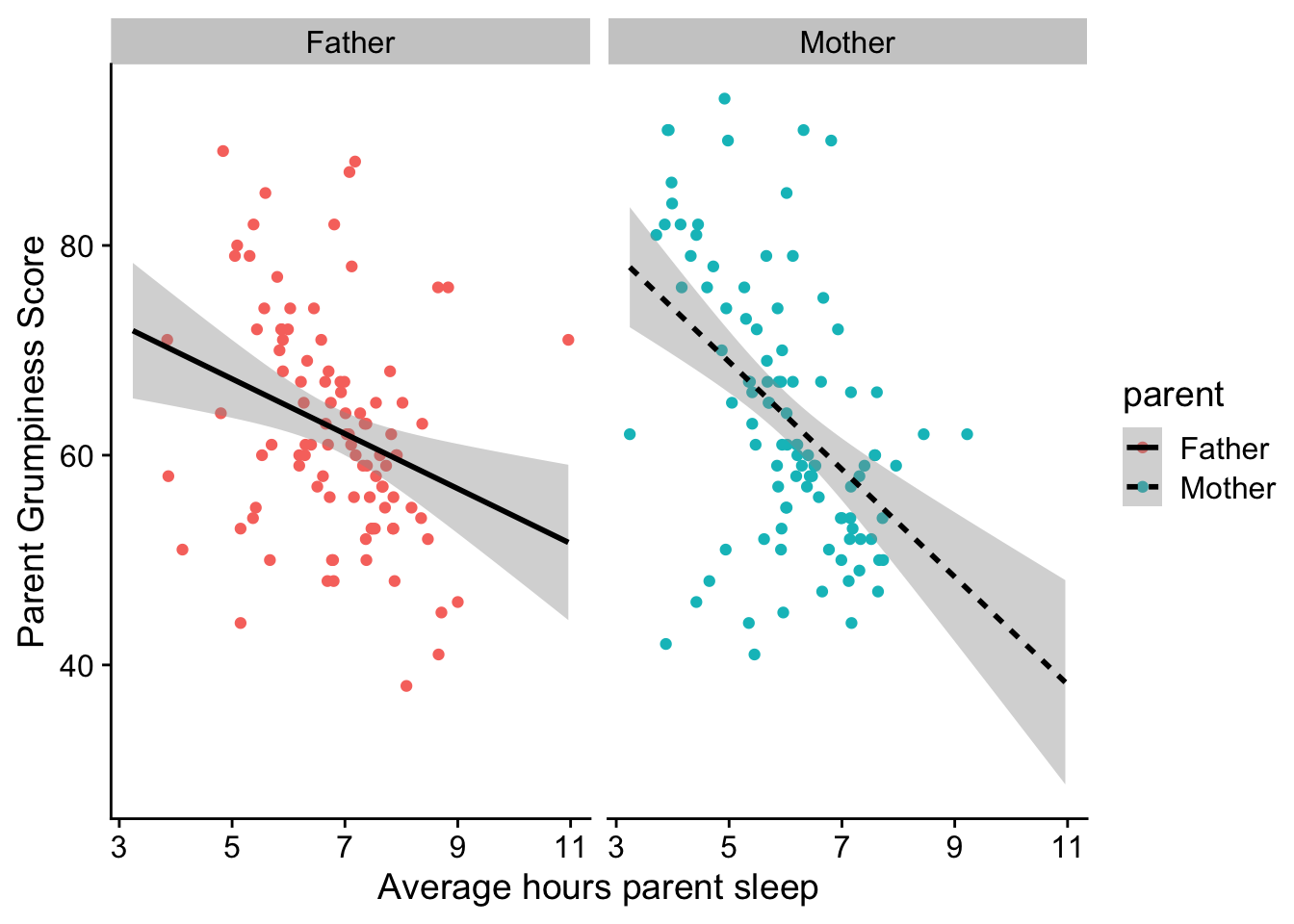

12.2.2.2 seperate plots

If you find the plot about to be too busy, use facet_wrap() instead

ggplot(parent_sleep_data, aes(x = parent_sleep, y=parent_grumpy)) +
  geom_point(aes(color=parent)) +
  stat_smooth(method = "lm", fullrange = T, se = T, # regression line with 95%CI
              color = "black", aes(linetype=parent)) + # color and linetype for regression line
  xlab("Average hours parent sleep") +
  ylab("Parent Grumpiness Score") +
  theme_cowplot() +
  facet_wrap(~parent)
`geom_smooth()` using formula = 'y ~ x'

12.2.2.3 Combination

Here I am plotting parent grumpiness as a function of avg. hours of sleep, differentiating BOTH by parent role and child:

ggplot(parent_sleep_data, aes(x = parent_sleep, y=parent_grumpy, group=parent)) +
  geom_point(aes(color=parent)) +
  stat_smooth(method = "lm", fullrange = T, se = T, # regression line with 95%CI
              color = "black", aes(linetype=parent)) + # color and linetype for regression line
  xlab("Average hours parent sleep") +
  ylab("Parent Grumpiness Score") +
  theme_cowplot() +
  facet_wrap(~child)
`geom_smooth()` using formula = 'y ~ x'

Without worrying about the statsitics, what story are these plots conveying about average hours sleep, relative grumpiness, and whether its your first born?

12.3 Differences in groups

Typically with differences in groups, you’ll want to present your data in one of several formats, depending on what you want to emphasize.

  • If your want to emphasize mean differences, choose a barplot or pointrange
  • If you want to emphaseze differences in distribution, choose a boxplot or violin plot

12.3.1 Comparing groups (levels) of a single IV

Question: Which parent typically gets less sleep when their in a newborn in the family?

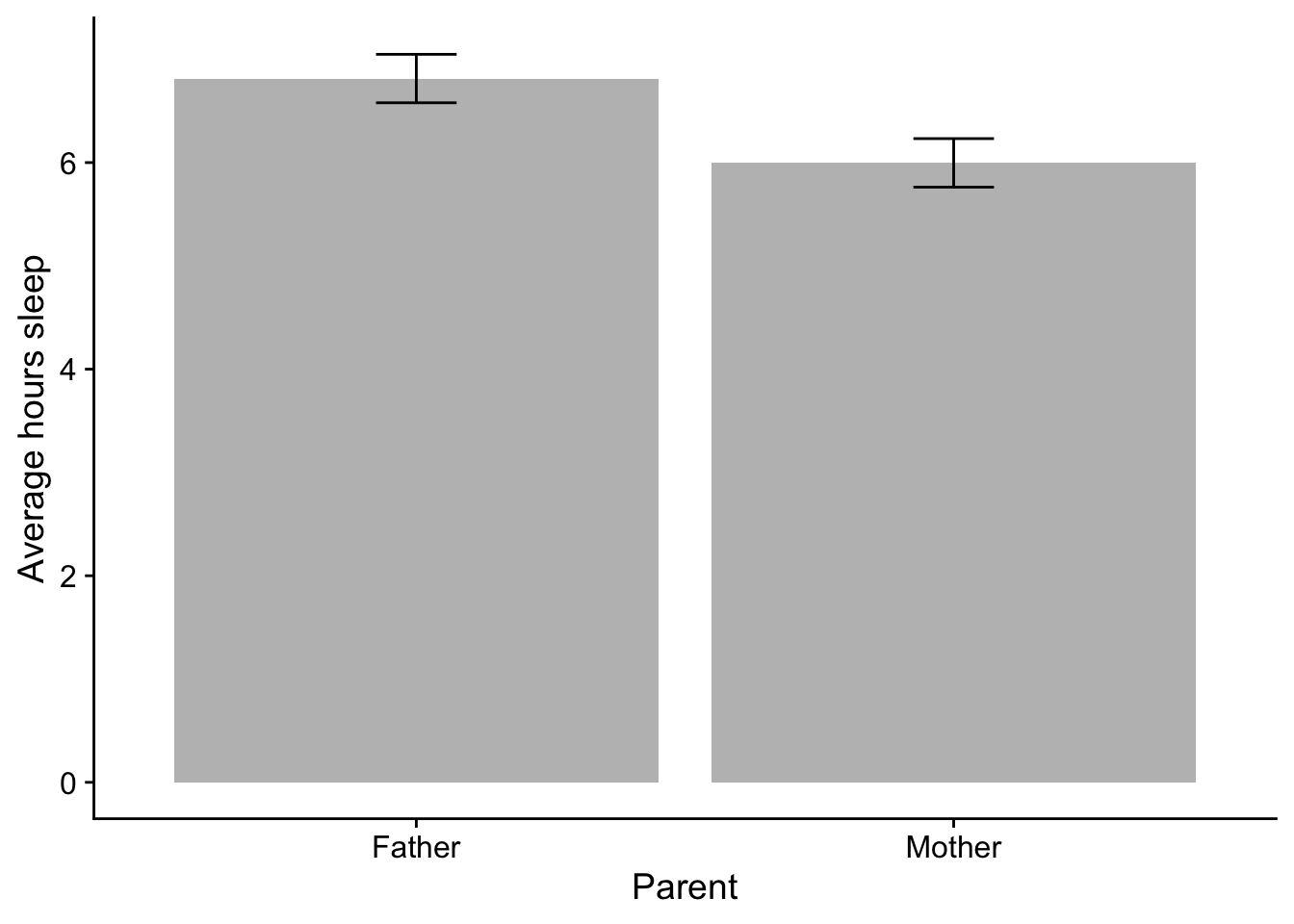

12.3.1.1 barplot

Barplots are typically the industry convention, although we’ve noted their issues:

ggplot(parent_sleep_data, aes(x = parent, y=parent_sleep)) +
  stat_summary(fun.y = "mean", geom = "col", fill="grey") + # you can change the color of the bar using `fill`; `color` changes the color of the outline.
  stat_summary(fun.data = "mean_cl_normal", geom = "errorbar", width=.15) +
  xlab("Parent") +
  ylab("Average hours sleep") +
  theme_cowplot()
Warning: The `fun.y` argument of `stat_summary()` is deprecated as of ggplot2 3.3.0.
ℹ Please use the `fun` argument instead.

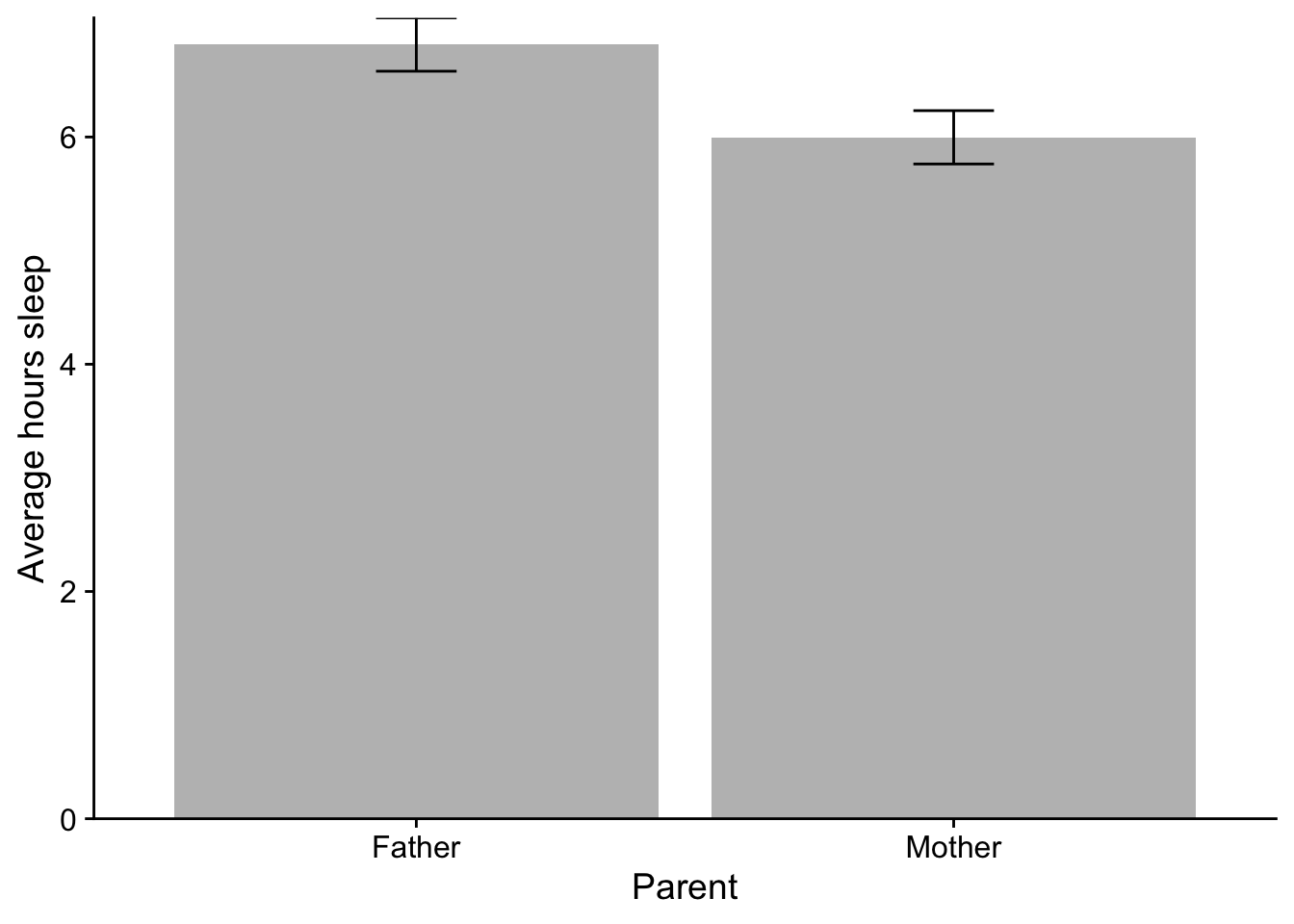

On annoying thing about barplots is that by default ggplot creats a gap betweeon 0 and the x-axis like above. To fix this, you need to add scale_y_continuous(expand = c(0,0)) to every barplot that you intend to start from 0.

ggplot(parent_sleep_data, aes(x = parent, y=parent_sleep)) +
  stat_summary(fun.y = "mean", geom = "col", fill="grey") + # you can change the color of the bar using `fill`; `color` changes the color of the outline.
  stat_summary(fun.data = "mean_cl_normal", geom = "errorbar", width=.15) +
  xlab("Parent") +
  ylab("Average hours sleep") +
  theme_cowplot() +
  scale_y_continuous(expand =  c(0,0))

12.3.1.2 barplot with datapoints

Another option is barplot with raw data point overlays, although these plots can look odd / busy.

ggplot(parent_sleep_data, aes(x = parent, y=parent_sleep)) +
  stat_summary(fun.y = "mean", geom = "col", position = position_dodge(.9), fill="grey", col="black") +
  geom_point(size=.5, position = position_jitter(.01)) +
  xlab("Parent") +
  ylab("Average hours sleep") +
  theme_cowplot() +
  scale_y_continuous(expand =  c(0,0))

12.3.1.3 boxplot

Boxplots are useful if you want to give your reader a little more info about the distribution of the data being compared. Here is the mother v. father data in boxplot form

ggplot(parent_sleep_data, aes(x = parent, y=parent_sleep)) +
  geom_boxplot() +
  xlab("Parent") +
  ylab("Average hours sleep") +
  theme_cowplot()

12.3.2 Comparing groups in a factorial design (interaction plot)

On we get to factoral ANOVA, we are comparing groups along multiple dimensions (multiple IVs). For example, here we are looking a means data of the average hours of sleep as a function of BOTH parent role and child number. A more technical way of saying this is that we are looking at these values as a function of the interaction between parent role and child number. Since there are two levels in both parent and child we end up with four means to convey. We typically want these means grouped in a way that conveys the design of the analysis.

Here I am grouping parent along the x-axis, and grouping child by the geom.

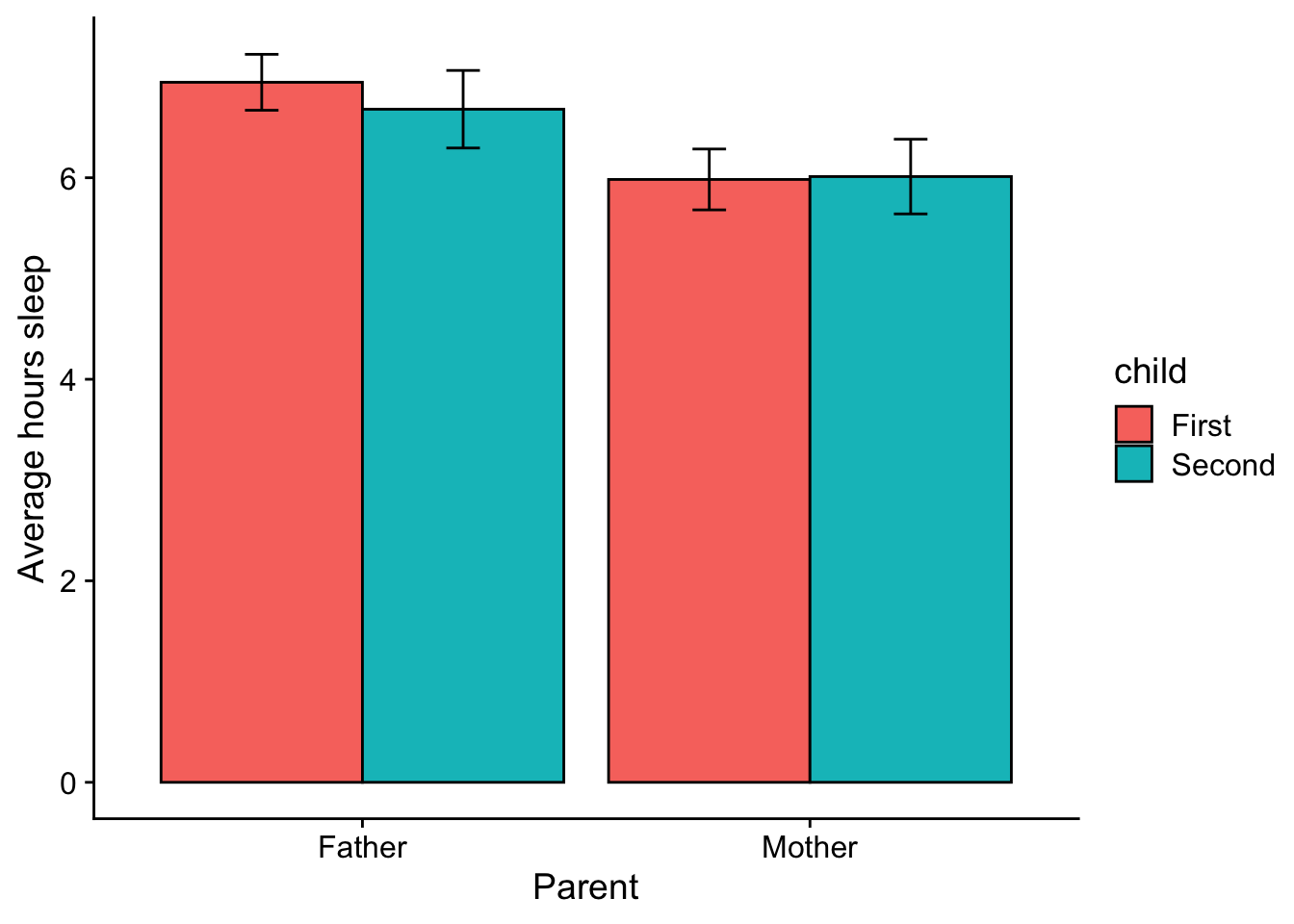

12.3.2.1 barplot with error bars

ggplot(parent_sleep_data, aes(x = parent, y=parent_sleep, group = child)) +
  stat_summary(fun.y = "mean", geom = "col", position = position_dodge(.9), aes(fill=child), col="black") +
  stat_summary(fun.data = "mean_cl_normal", geom = "errorbar", width=.15, position = position_dodge(.9)) +
  xlab("Parent") +
  ylab("Average hours sleep") +
  theme_cowplot()

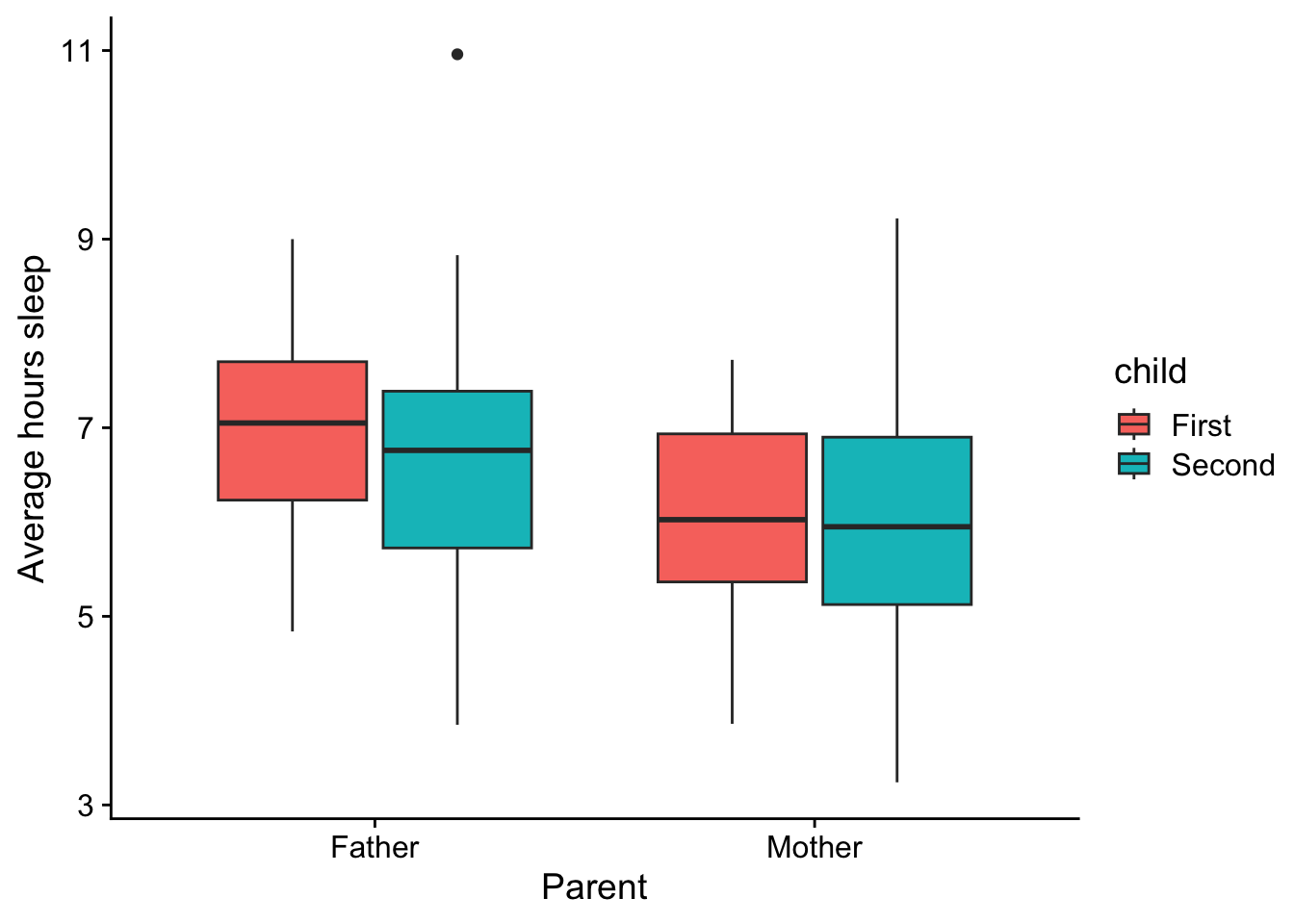

12.3.2.2 boxplot

Note that when you put together a boxplot, you need to note that the grouping is by the interaction between the two variables.

ggplot(parent_sleep_data, aes(x = parent, y=parent_sleep, fill = child)) +
  geom_boxplot(aes(group=interaction(child,parent))) +
  xlab("Parent") +
  ylab("Average hours sleep") +
  theme_cowplot()

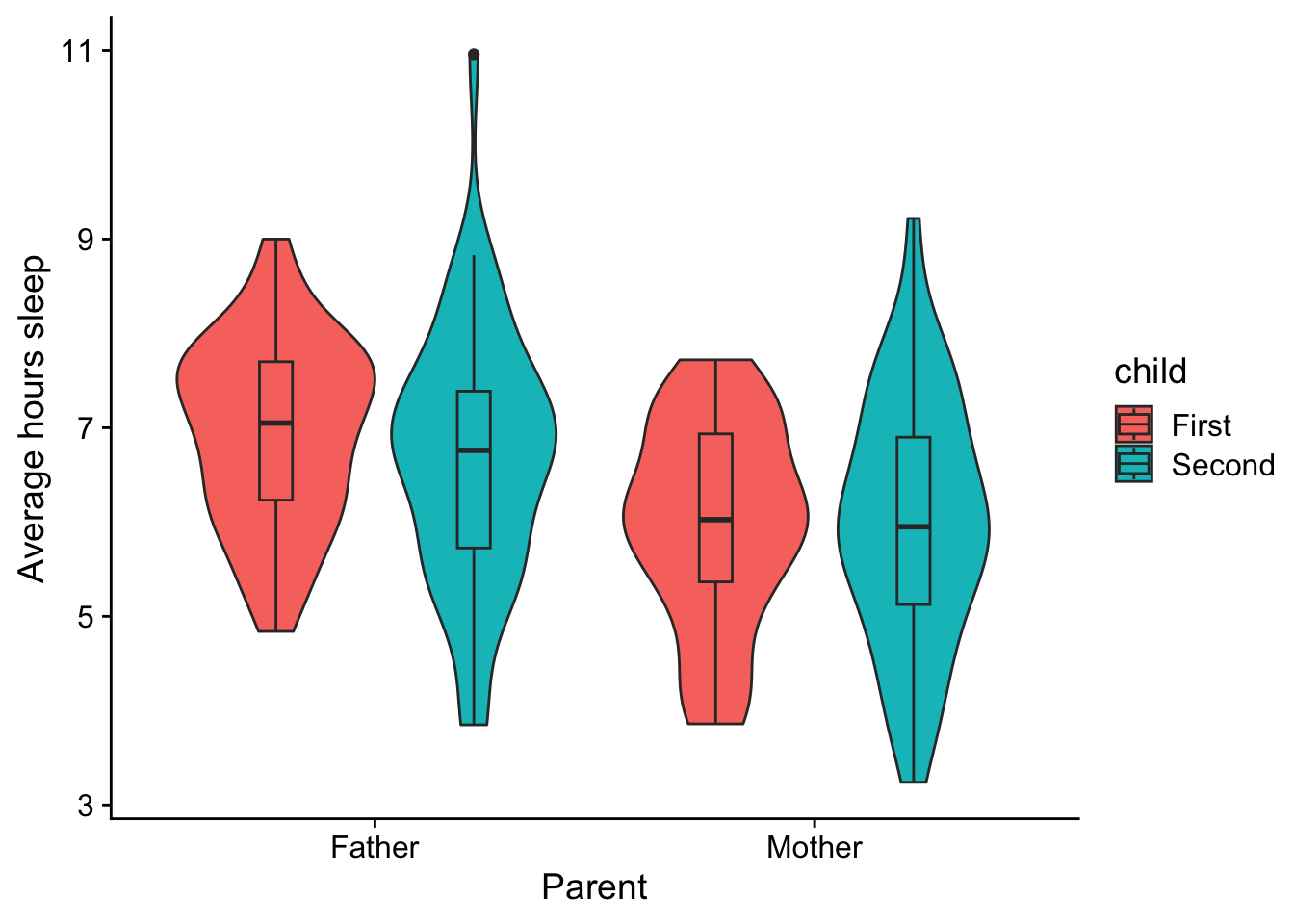

12.3.2.3 violin-barplot combo

ggplot(parent_sleep_data, aes(x = parent, y=parent_sleep, fill = child)) +
  geom_violin(trim = T,
              aes(group=interaction(child,parent))) +
  geom_boxplot(width = .15,
               position = position_dodge(.9),
                aes(group=interaction(child,parent))
               ) +
  xlab("Parent") +
  ylab("Average hours sleep") +
  theme_cowplot()

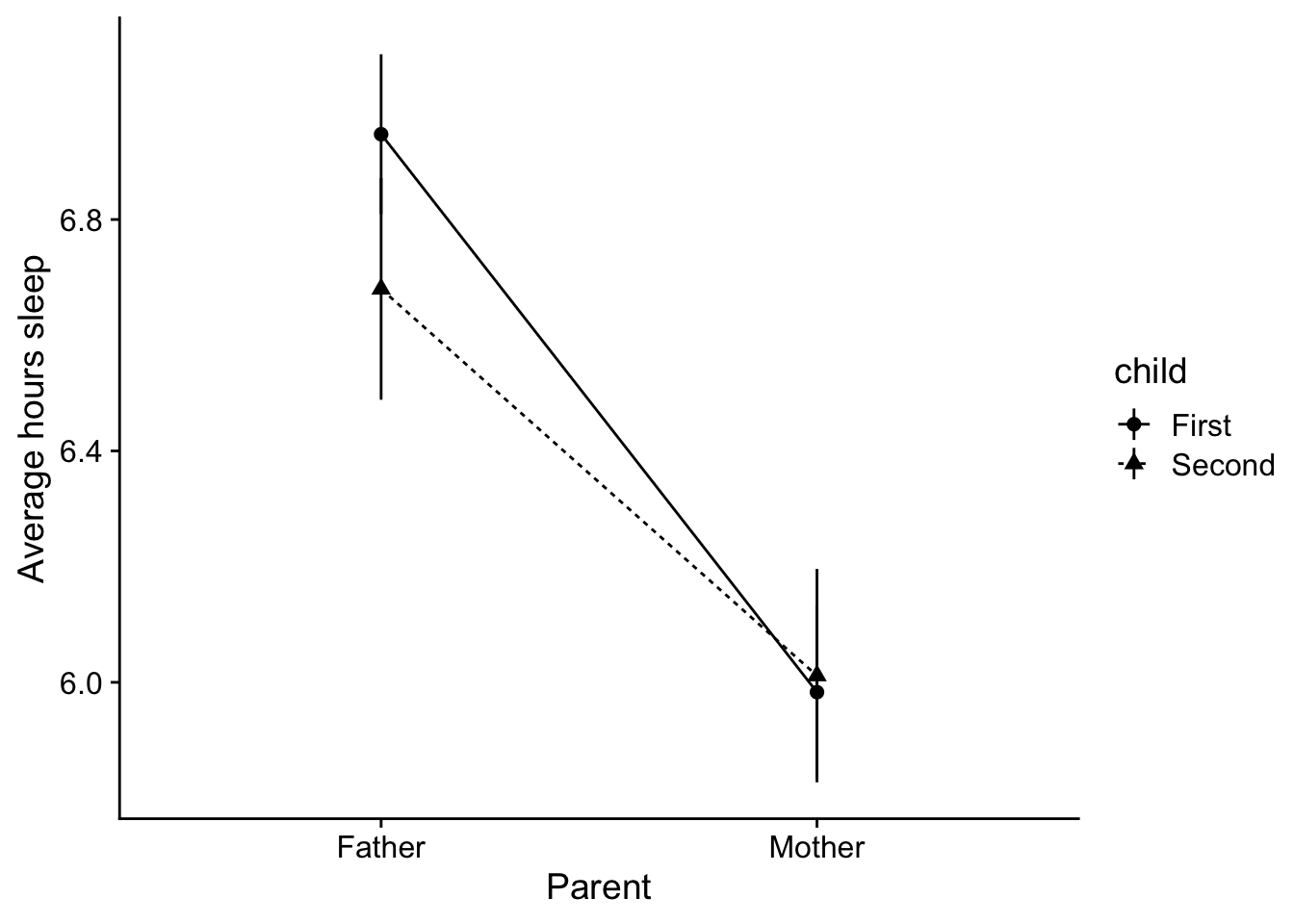

12.4 Line plots

Typically we only use line plots when the data is “connected” somehow. For example, imagine that instead of seperate groups for child (100 parents with their first v. 100 different parents with their second) be got data from parents with two children (200 parants comparing experience with first child v second). FWIW this would end up being a mixed design—parent: mother v. father is a between variable, and child would be a within. In this case it would make sense to draw a line plot connecting first child values to the second child values to emphasize that this data reflects that these data a meaningfully connected / dependent on one another.

In cases like these I recommend a line and pointrange plot. I also recommend getting familiar with position_dodge as a way of dealing with overlapping pointranges. For example, without the points and lines dodged:

ggplot(parent_sleep_data, aes(x = parent, y=parent_sleep, group = child)) +
  stat_summary(fun.data = "mean_se", geom = "pointrange", aes(shape=child)) +
  stat_summary(fun.y = "mean", geom = "line", aes(linetype=child)) +
  xlab("Parent") +
  ylab("Average hours sleep") +
  theme_cowplot()

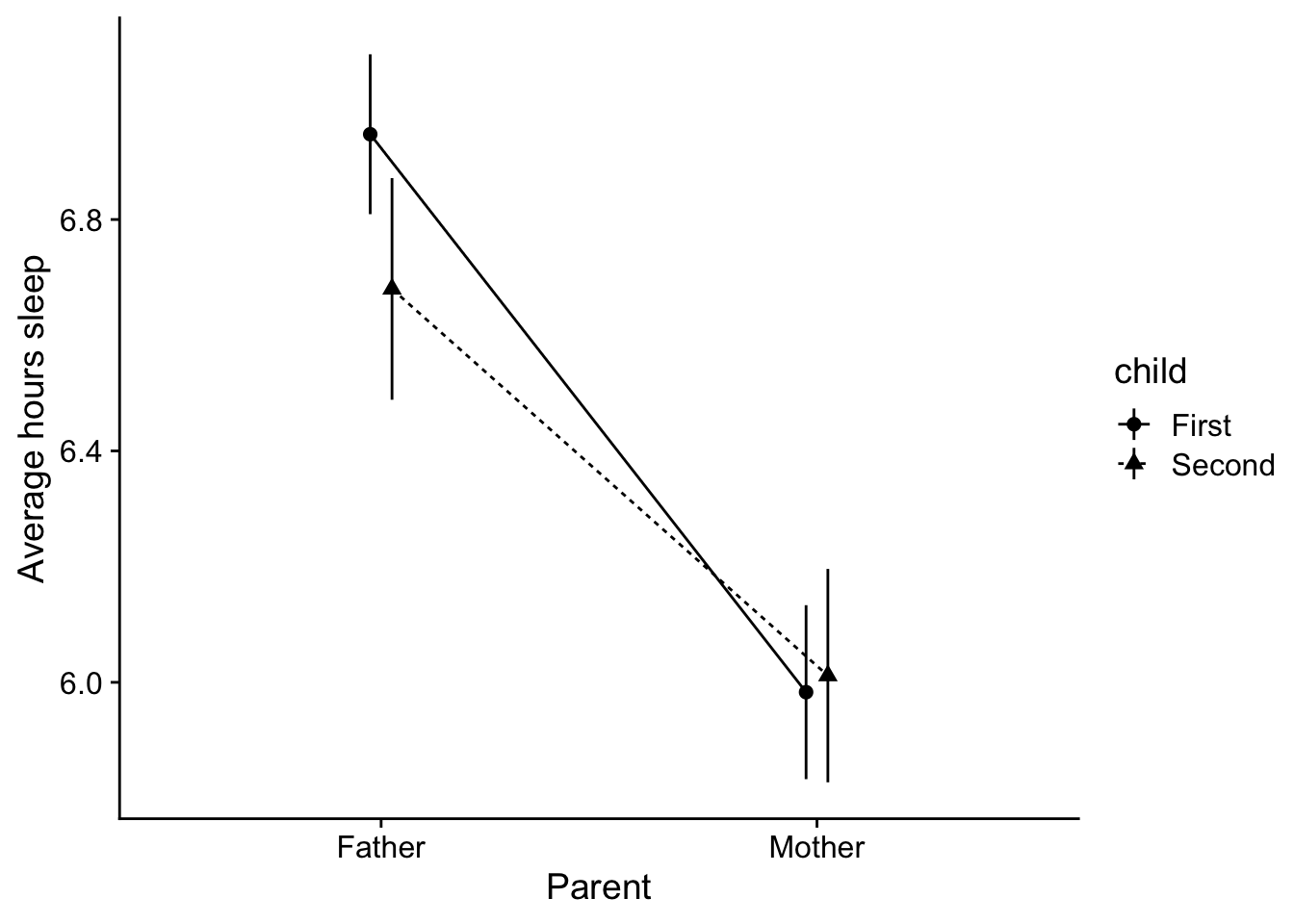

compared to with them dodged:

ggplot(parent_sleep_data, aes(x = parent, y=parent_sleep, group = child)) +
  stat_summary(fun.data = "mean_se", geom = "pointrange", aes(shape=child), position = position_dodge(.1)) +
  stat_summary(fun.y = "mean", geom = "line", aes(linetype=child), position = position_dodge(.1)) +
  xlab("Parent") +
  ylab("Average hours sleep") +
  theme_cowplot()

12.5 A note on color and APA formatting

If you are concerned about APA formatting, I find the theme_cowplot() from the cowplot package will get you almost all of the way there depending on how complex your plot is. For example, this plot is pretty ready to go:

ggplot(parent_sleep_data, aes(x = parent, y=parent_sleep, group = child)) +
  stat_summary(fun.data = "mean_se", geom = "pointrange", aes(shape=child)) +
  stat_summary(fun.y = "mean", geom = "line", aes(linetype=child)) +
  xlab("Parent") +
  ylab("Average hours sleep") +
  theme_cowplot()

12.6 The Legend

12.6.1 Positioning

A few issues remain. APA asks for the legend to be within the plot itself (not off to the side). This can be accplished by adjusting the legend. With the legend.position call, imagine your plot has a coordinate system ranging from 0 to 1 along both the x and y axes. So for example, to place the legend in a position at 50% of the x-axis and 75% of the y-axis:

ggplot(parent_sleep_data, aes(x = parent, y=parent_sleep, group = child)) +
  stat_summary(fun.data = "mean_se", geom = "pointrange", aes(shape=child)) +
  stat_summary(fun.y = "mean", geom = "line", aes(linetype=child)) +
  xlab("Parent") +
  ylab("Average hours sleep") +
  theme_cowplot() +
  theme(legend.position = c(.5, .75))

Play around with this to get a feel for how position changes.

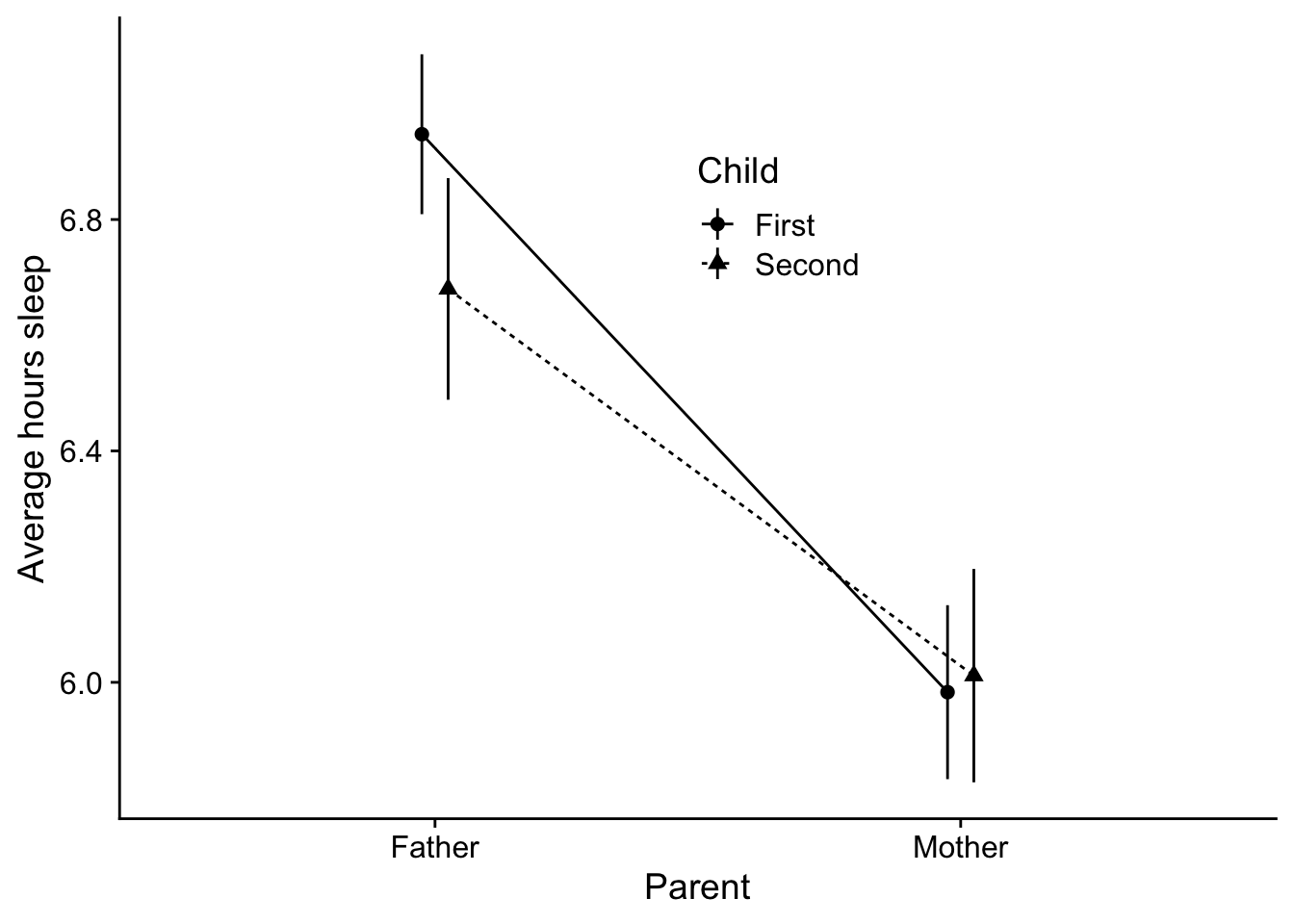

12.6.2 Title-ing

To change the header in the legend to a capital “Child”, I need to have an appreciation for what is changing in the legend. In this case child is designated by both shape and linetype. I then use the labs() call

ggplot(parent_sleep_data, aes(x = parent, y=parent_sleep, group = child)) +
  stat_summary(fun.data = "mean_se", geom = "pointrange", aes(shape=child), position = position_dodge(.1)) +
  stat_summary(fun.y = "mean", geom = "line", aes(linetype=child), position = position_dodge(.1)) +
  xlab("Parent") +
  ylab("Average hours sleep") +
  theme_cowplot() +
  theme(legend.position = c(.5, .75)) +
  labs(shape = "Child", linetype="Child")

This is typically good enough for the legend, but I invite you to go this page on Datanova if you really want to get into customizing the legend, including reversing the order of items, and presenting the legend in wide format.

12.6.3 Color

A convention of print publication is to present your figures in black-white-greyscale (cheaper ink!). Since most people read articles by way of pdf you might find this a bit antiquated.

My Pro-tip: - For simple plots like these, use APA format (black-white-grey) if your intend to submit for print. For complex plots this may mean you need to differentiate your group data by shape or linetype as in the previous plot.

  • I’d offer for presentations and posters, use color to make your figures pop! i.e., highlighting important aspectes of the data.

ggplot() has a default color scheme that’s pretty terrible. For example, you recreate the previous plot differntiating child (First v. Second) by color, I can add color to first line.

ggplot(parent_sleep_data, aes(x = parent, y=parent_sleep, group = child, color=child)) +
  stat_summary(fun.data = "mean_se", geom = "pointrange", aes(shape=child), position = position_dodge(.1)) +
  stat_summary(fun.y = "mean", geom = "line", aes(linetype=child), position = position_dodge(.1)) +
  xlab("Parent") +
  ylab("Average hours sleep") +
  theme_cowplot() +
  theme(legend.position = c(.5, .75))

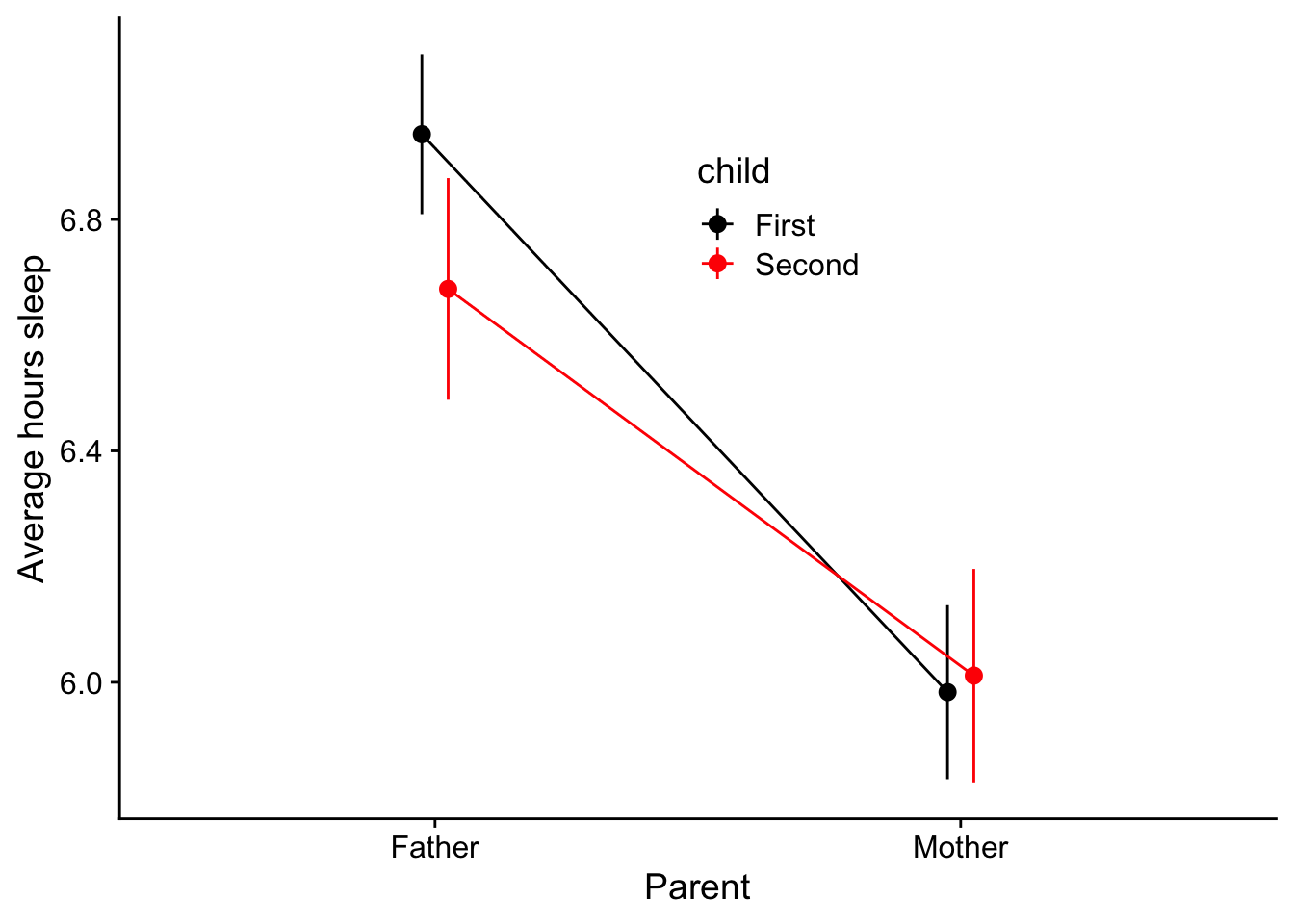

Differentiaing the same thing, child by shape, linetype, and color is a bit redundent. So there’s that. At the same time those default color choices are awful! Fortunately I can change this using scale_color_manual

ggplot(parent_sleep_data, aes(x = parent, y=parent_sleep, group = child, color=child)) +
  stat_summary(fun.data = "mean_se", geom = "pointrange", position = position_dodge(.1)) +
  stat_summary(fun.y = "mean", geom = "line", position = position_dodge(.1)) +
  xlab("Parent") +
  ylab("Average hours sleep") +
  theme_cowplot() +
  theme(legend.position = c(.5, .75)) +
  scale_color_manual(values = c("black", "red"))

12.7 Advanced stuff

For other cool stuff that can be done with cowplot() including placing multiple plots side by side, check out the signette links below written by its author, Claus O. Wilke:
